EASE: Project Browser

The Project Browser provides a good overview and offers easy access to the design elements. The browser offers three views:

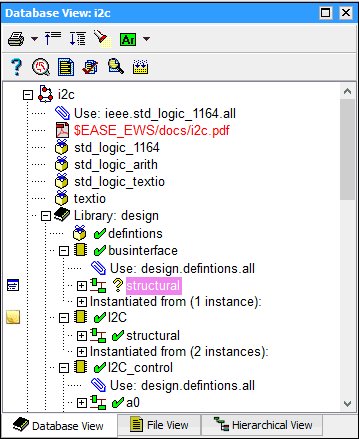

  • Database View: shows a tree of all elements in your project

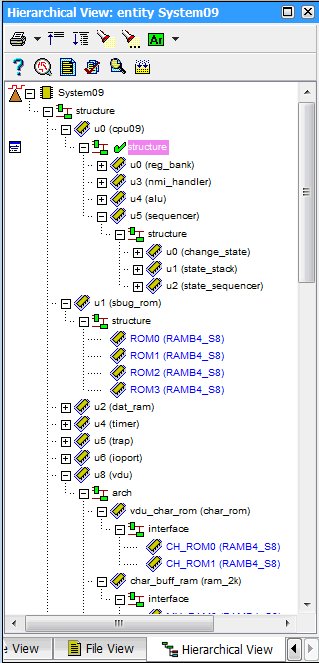

  • Hierarchical View: shows the hierarchy of your project
  • File View: shows all (generated) HDL files in the project
It also provides many status details of the different objects, like verification status, 'instantiated from' info, version number and more. From the browser, all objects can be opened in their respective editor (block, state, truth table or text editor).

Design related documents like Word or PDF documents, internet links or sticky notes can be added to main design objects in the database view. Double clicking on such a document will open the appropriate editor.

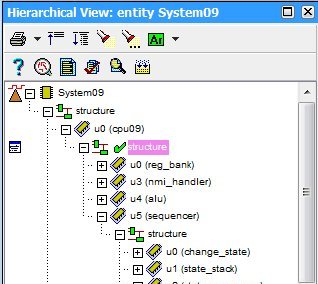

The Hierarchical View shows the hierarchy of the selected entity, module or configuration. It allows you to create or delete configurations. Here you can also changes the binding of an architecture to a component when having multiple architectures for an entity.
