Module verification

Module verification is a new technique in BoardTrace to verify specific components like DIMM memory modules or PCI-E connectors have been correctly connected. A module is decribed using an XML file with a description for each pin. The module is then be attached to a component on the board and shown as a virtual board.

Module descriptions can be created by the user and placed in either the user of corporate location.

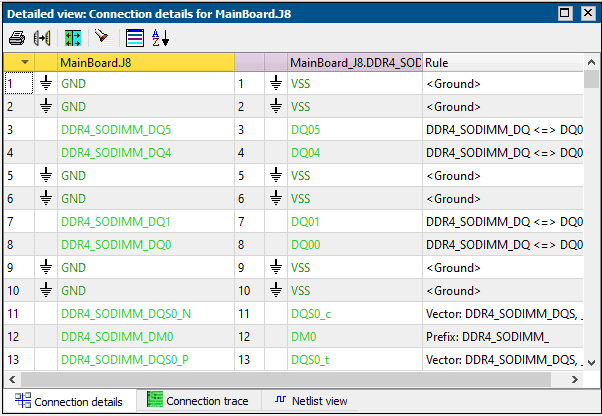

Module verificaton of a SO-DIMM module
Module verificaton of a SO-DIMM module
