HDL Companion: Hierarchical View

You can create an hierarchical overview for each entity/module in your project. The hierarchy can be displayed in 2 modes. One is the Tree view mode, also used in the other views. The other is the Rake mode, which resembles the traditional top-down view.

Below is an example of the hierarchy for an I2C model with testbench displayed in the 2 modes.

Hierarchical View
HDLCompanion Hierarchical View

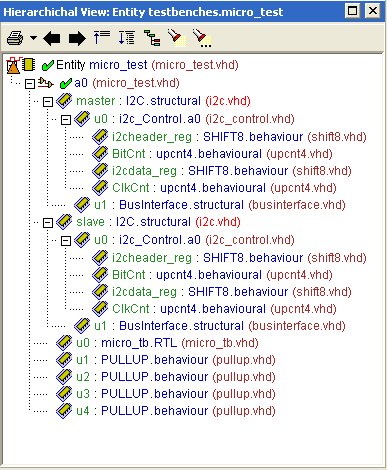

 Hierarchical Tree View
HDLCompanion Hierarchical Tree View

Detailed View Trace View
