Pin labels in the netlist view

BoardTrace uses pin labels in the columns of the components when available in the PCB netlist format. The pin labels make it easier to verify connectivity. You can add any number of components to the view to easily see how they connect to each other. in the example below it easy to see that data lines D14 and D15 have incorrect connections.

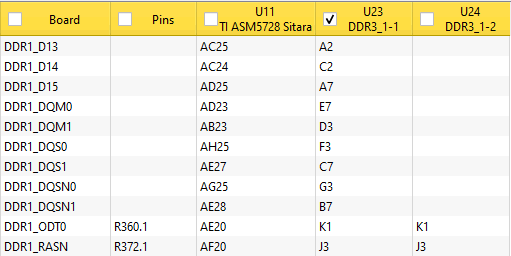

Connections by pin number
Connections by pin number

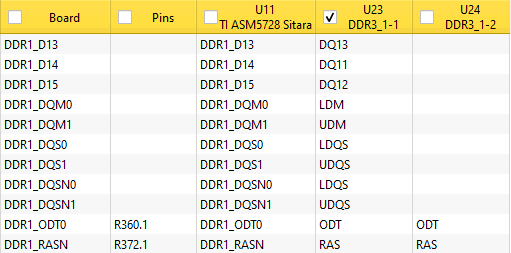

Connections by pin label
Connections by pin label

Pin labels are currently extracted from the following PCB netlist formats:
